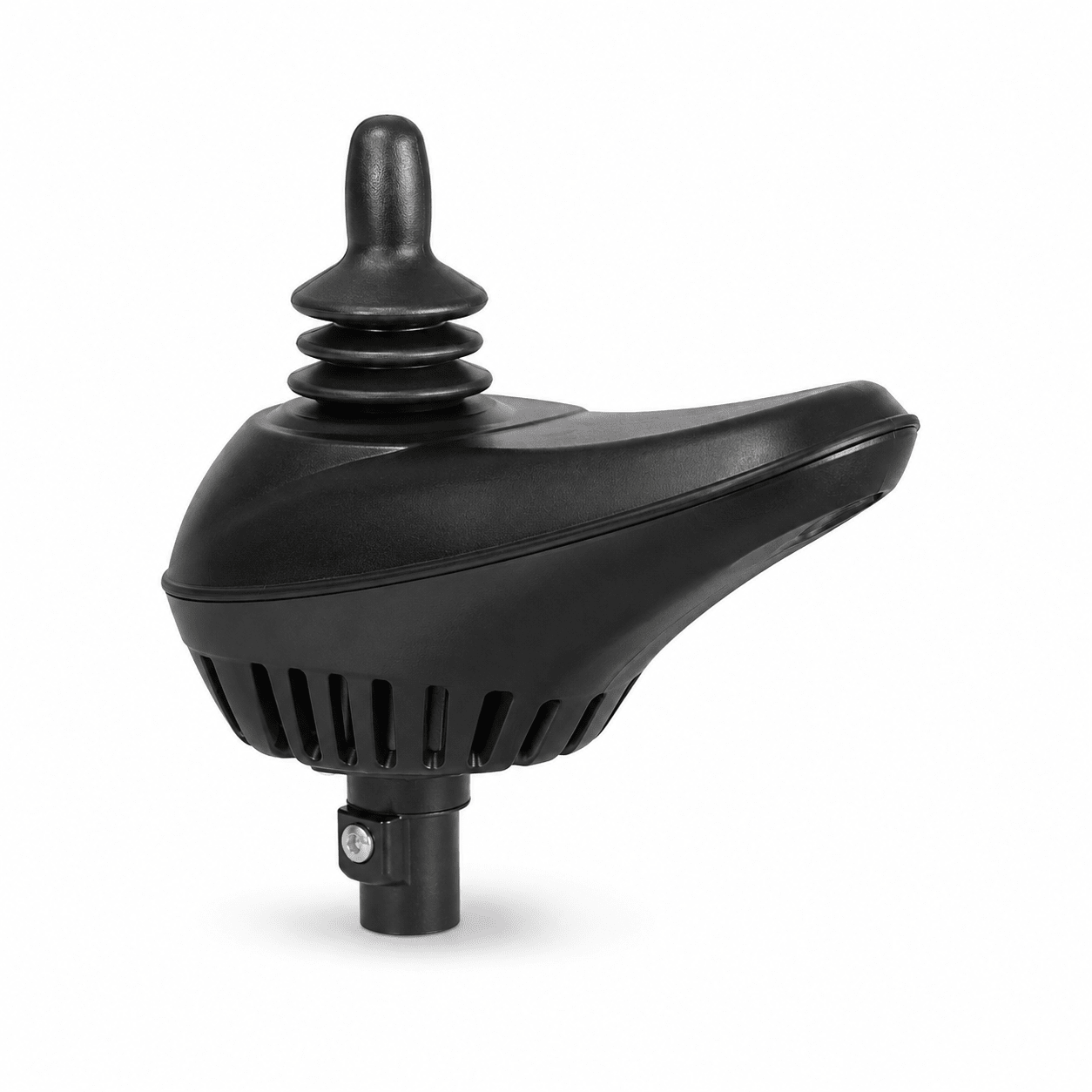

DeepTita 24V Electric Wheelchair Joystick Controller, Classic Edition
$199.00
A responsive armrest-mounted joystick controller for steering and speed control on compatible 24V electric wheelchairs
- Proportional joystick controls wheelchair direction and speed through one intuitive interface
- 360-degree joystick movement supports forward, reverse, left and right maneuvering
- Designed for compatible 24V dual brushed-motor wheelchair systems
- Maximum reference output current of 50A supports dual-motor drive configurations
- Center-return joystick commands gradual deceleration and stopping when released
- Supports compatible 24V electromagnetic wheelchair brakes
- Start-up self-check monitors motor, brake, battery and joystick-center connections
- Protection logic covers overvoltage, undervoltage, overcurrent, overload and temperature conditions
- Flexible multi-layer joystick boot covers the moving base of the control lever
- Compact black housing mounts beside a compatible wheelchair armrest
For more info read below.
Product Specification
-
Product Type：Electric Wheelchair Joystick Controller
-
Controller Type：Dual-motor joystick controller
-
Control Method：Proportional Hall-effect joystick
-
System Voltage：24V DC
-
Operating Voltage Range：18–34V DC
-
Maximum Output Current：50A
-
Compatible Motor Type：24V brushed DC wheelchair motors
-
Motor Configuration：Dual-motor drive system
-
Reference Motor Power：Compatible with selected dual 250W motor systems, subject to controller programming and wiring verification
-
Direction Control：Forward, reverse, left and right
-
Speed Control：Proportional joystick input
-
Joystick Movement：360-degree multi-directional control
-
Joystick Return：Automatic center return
-
Brake Voltage：24V DC
-
Brake Current：Approx. 0.3–3.0A
-
Brake Mode：Automatic or manual configuration, depending on the wheelchair system
-
Start-Up Detection：Motor wiring, brake wiring, battery condition and joystick-center position
-
Protection Functions：Overvoltage, undervoltage, overcurrent, overload and temperature protection
-
Operating Temperature：Approx. −13°F to 122°F (−25°C to 50°C)
-
Storage Temperature：Approx. −40°F to 149°F (−40°C to 65°C)
-
Housing Material：ABS
-
Color：Black
-
Mounting Position：Wheelchair armrest
-
Mounting Interface：Tubular mounting post; exact diameter must be confirmed
-
Connector Type：Not confirmed; must match the original wheelchair wiring harness
-
USB Port：Not confirmed
-
Wireless Remote：Not included unless specifically stated
-
Package Includes：One joystick controller
-
Best For：Replacement or repair of compatible 24V dual-motor electric wheelchair control systems
-
Compatibility Check：Match the original controller’s voltage, motor type, current rating, brake wiring, connector shape, pin layout, mounting size and communication protocol
-
Installation：Professional installation, programming and functional testing recommended
-
Not Universal：Do not connect the controller until full electrical and mechanical compatibility has been confirmed
