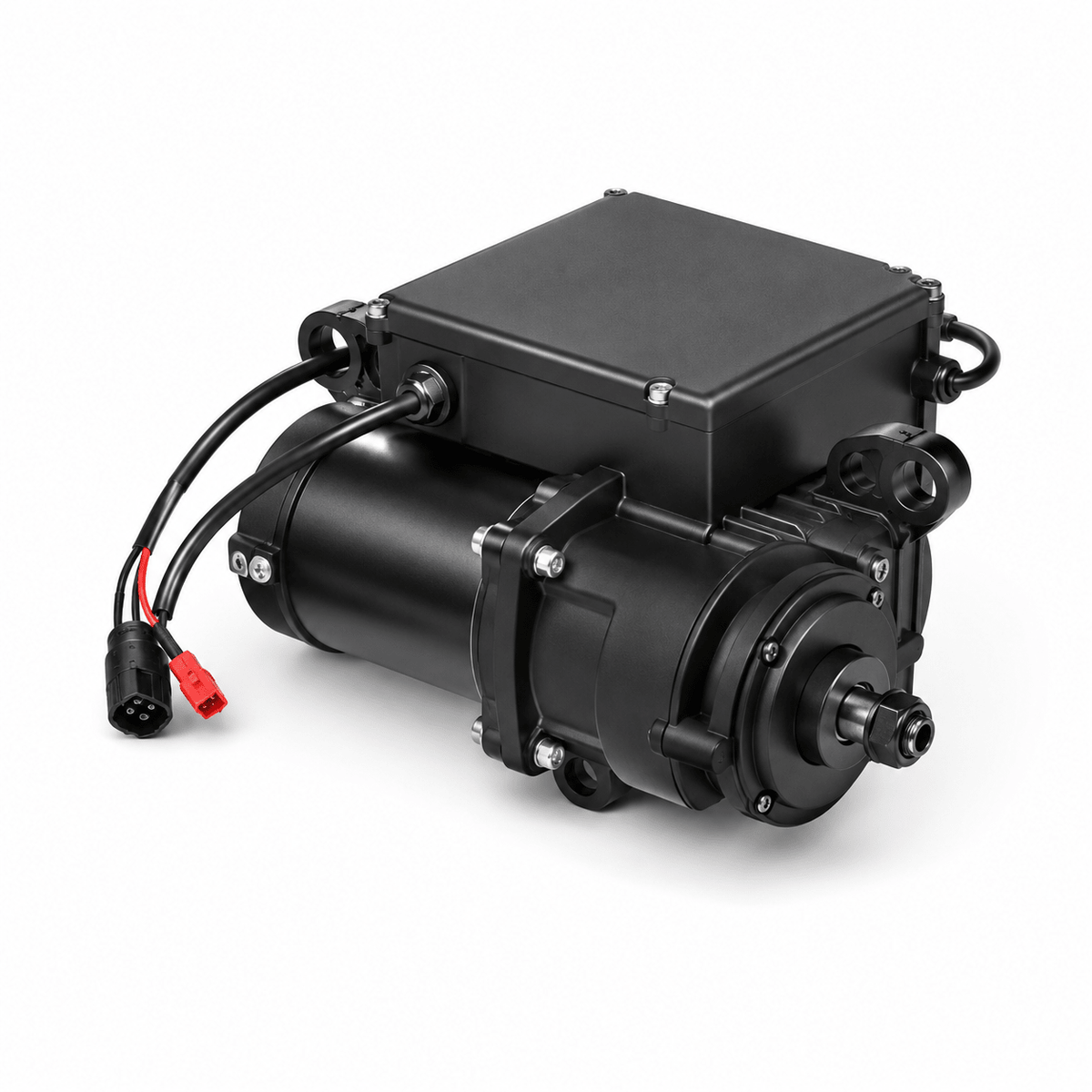

DeepTita 24V 250W Electric Wheelchair Drive Motor with Brake, Classic Edition
$169.00
A low-speed, high-torque replacement drive motor for compatible 24V electric wheelchairs
- 24V DC motor designed for compatible electric wheelchair drive systems
- 250W rated output supports everyday powered mobility applications
- 120 RPM geared output balances controlled speed with higher drive torque
- Permanent-magnet brushed DC construction provides a practical replacement configuration
- Integrated electromagnetic brake supports controlled stopping when power is released
- Rated torque of approximately 15 N·m for low-speed wheelchair propulsion
- Keyed output shaft supports a secure mechanical connection to a compatible wheel assembly
- Compact single-motor design weighs approximately 7.1 lb
- Suitable for replacing one side of a compatible dual-motor wheelchair system
- Voltage, mounting position, shaft, wiring and connector compatibility must be verified before installation
For more info read below.
Product Specification
-
Product Type：Electric Wheelchair Replacement Drive Motor
-
Motor Type：Permanent Magnet Brushed DC Gear Motor
-
Rated Voltage：24V DC
-
Rated Output Power：250W
-
Rated Output Speed：120 RPM
-
Base Motor Speed：Approx. 3,700 RPM
-
Rated Torque：Approx. 15 N·m (133 lb-in)
-
Rated Current：Approx. 14.8A
-
No-Load Current：Approx. 4.0A
-
Motor Efficiency：Approx. 76%
-
Brake Type：Integrated electromagnetic brake
-
Shaft Type：Keyed output shaft
-
Shaft Diameter：Approx. 17 mm (0.67")
-
Shaft Length：Approx. 46 mm (1.81")
-
Insulation Class：Class E
-
Motor Weight：Approx. 3.21 kg (7.1 lb)
-
Installation Position：Side-specific; verify left- or right-side configuration before ordering
-
Quantity：One drive motor
-
Controller Included：Not confirmed; do not assume the motor includes a wheelchair controller
-
Best For：Replacement or repair of compatible 24V, 250W electric wheelchair drive systems
-
Compatibility Check：Match the original motor’s voltage, wattage, output speed, shaft dimensions, mounting-hole spacing, rotation direction, brake wiring and electrical connectors
-
Installation：Professional installation and functional testing recommended
-
Not Universal：Do not install until compatibility with the original wheelchair and controller has been confirmed
