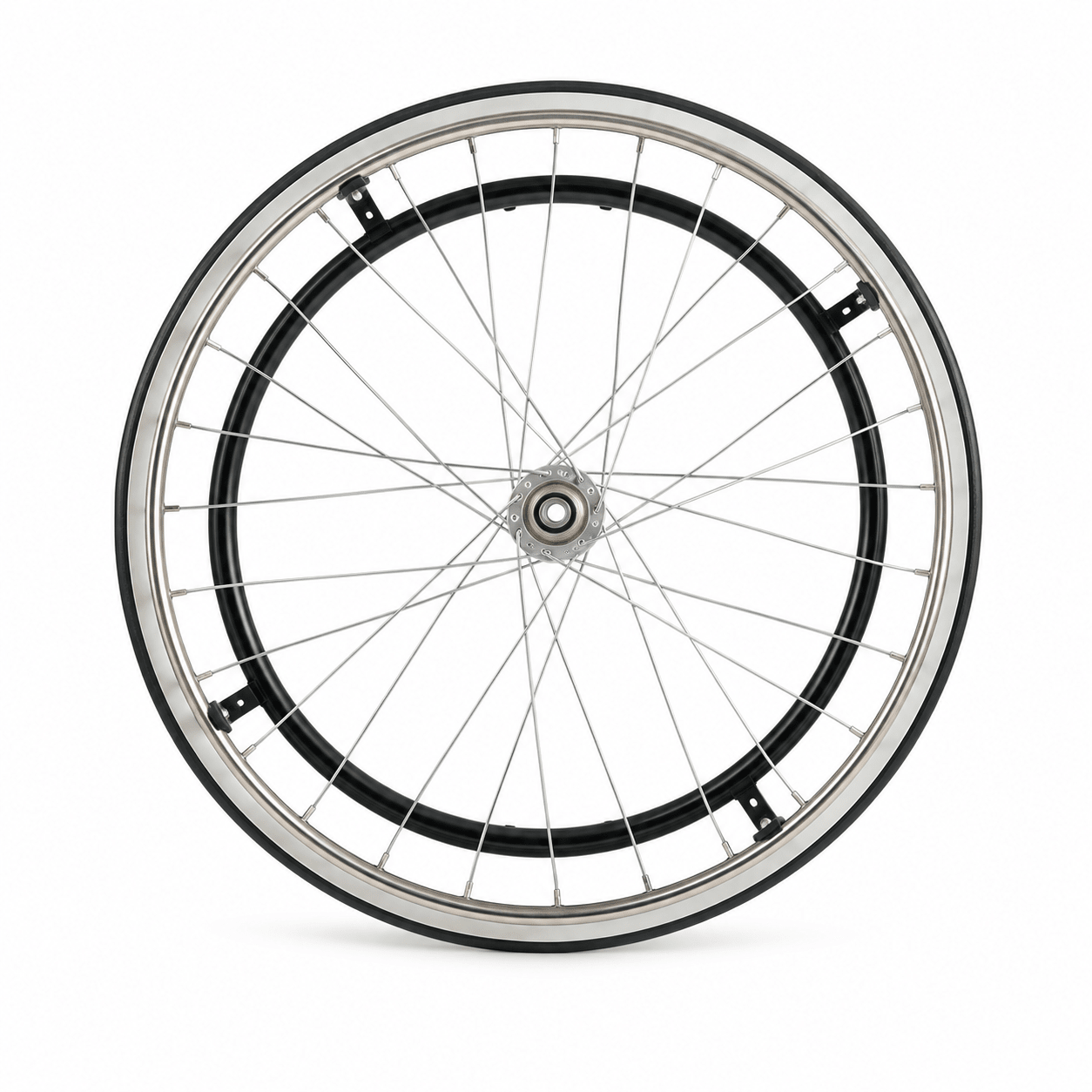

DeepTita 24-Inch Wheelchair Rear Wheel with Handrim, Classic Edition
$79.00
A complete replacement rear wheel with an integrated handrim for compatible self-propelled manual wheelchairs
- Complete rear-wheel assembly combines the tire, rim, spokes, hub bearings and handrim
- Nominal 24-inch size fits selected adult manual wheelchair configurations
- Black aluminum handrim supports everyday self-propulsion and directional control
- Solid tire eliminates the need for inflation and routine air-pressure checks
- Aluminum-alloy wheel rim provides a practical balance of strength and manageable weight
- 36-spoke construction distributes load around the wheel
- Stainless-steel spokes provide a clean, traditional wheelchair-wheel profile
- Precision hub bearings support smooth wheel rotation
- Four mounting tabs secure the handrim to the wheel assembly
- Designed as a replacement part; all axle and frame dimensions must match the original wheel
For more info read below.
Product Specification
-
Product Type：Manual Wheelchair Rear Wheel Assembly with Handrim
-
Nominal Wheel Size：24"
-
Wheel Standard：ISO 540 reference size
-
Wheel Configuration：Spoked rear wheel
-
Tire Type：Solid wheelchair tire
-
Inflation Required：No
-
Tire Color：Black
-
Wheel Rim Material：Aluminum alloy
-
Wheel Rim Finish：Silver
-
Handrim Material：Aluminum alloy
-
Handrim Finish：Black anodized finish
-
Handrim Mounting：Four-tab mounting configuration shown
-
Spoke Count：36
-
Spoke Material：Stainless steel
-
Spoke Size：Approx. 14G / 2 mm reference specification
-
Hub Type：Precision-bearing hub
-
Bearing Inner Diameter：Approx. 1/2" (12.7 mm)
-
Hub Width：Approx. 2.05" (52 mm), bearing to bearing
-
Axle Included：No
-
Quick-Release Axle：Not included; compatibility depends on the original wheelchair
-
Color：Silver rim and spokes with black tire and handrim
-
Package Quantity：One rear-wheel assembly
-
Wheel Side：Confirm left- or right-side installation and handrim orientation before ordering
-
Best For：Replacing one rear wheel on a compatible 24-inch self-propelled manual wheelchair
-
Compatibility Check：Confirm the original wheel’s ISO/ETRTO size, bearing diameter, hub width, axle length, mounting clearance and handrim position
-
Weight Capacity：Not specified; follow the wheelchair manufacturer’s approved rear-wheel rating
-
Installation：Professional fitment and wheel-retention testing recommended
-
Not Universal：Do not install until the axle, bearing, hub and frame dimensions have been confirmed
